Custom Glass Design Guidelines

SIMPLE STEPS TO A QUOTE

1. GLASS TYPE:

Upload Your Design

Choose a glass type based off your viewing needs:

TN   STN   FSTN   BTN/SILK SCREEN

2. Interface:

AZ DISPLAYS CUSTOM GLASS LCD PINS
AZ DISPLAYS CUSTOM GLASS LCD ZEBRA STRIP ELASTOMERIC

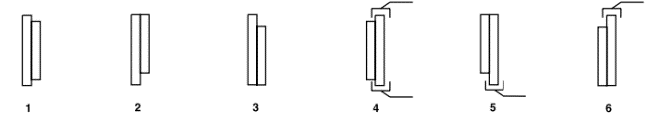

Interface Configuration:

3. LED Backlight Color Options:

All backlights come with a diffuser film to evenly disperse
the light from the LED’s to eliminate “hot spots???.

White
Blue
Red
Green
Yellow
No Backlight

Download Design Sheet

If you don’t have a drawing already, you can download the Design Sheet and return to sales@azdisplays.com or contact an engineer for technical support at 949.360.5830

DESIGN GUIDELINES

Custom Glass LCD Info Minimum Maximum
Size No less than 1.5″ No more than 10″
Width of Glass No less than 15mm No more than 160mm
Large Glass Height No less than 15mm No more than 160mm
Small Glass Height No less than 14mm No more than 150mm
Viewing Area No less than 1.4″ No more than 9.8″
First Contact PIN and Zebra
Glass Thickness 1.7mm(seldom use), 2.0mm(common), 2.8mm(common)
Contact Pitch(Metal PIN) Pitch=1.5mm, Pitch=1.8mm, Pitch=2.0mm, Pitch=2.54mm
Contact Pitch(Zebra) Pitch: more than 0.6mm No upper limit
