Custom Glass LCD with TN, STN, and FSTN Technology
- Lowest Unit Cost – Custom glass LCD solutions are typically less expensive than monochrome and TFT displays.
- Many Size Options – Flexible design requirements allow for a wide range of size options for custom glass LCD. Designs can be as small as 1.5″ and as large as 10″.
- Very Fast Tooling Process – Concept to Production as fast as 12 weeks – Tooled samples delivered in as little as 4 weeks. Once customer provides drawing to firstname.lastname@example.org , we can have a proposed design within in 1-2 days.
- Proposal Design
- Production Orders
- Total Time
- ~1 – 2 Days
- ~4 – 5 Weeks
- ~8 – 10 Weeks
- ~12 – 15 Weeks
- High Contrast
- No Ghosting
- No light is transmitted through “Off??? segments.
- Excellent Contrast Ratio 600:1

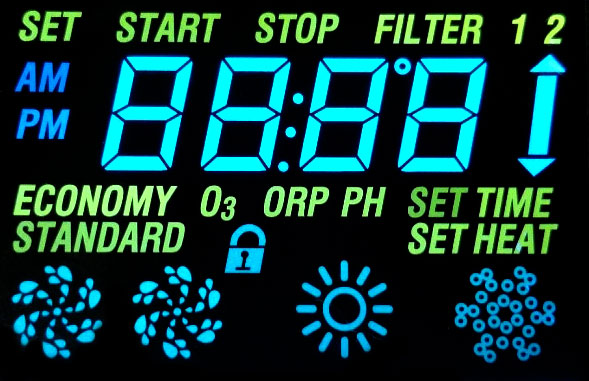

- Multi-color display possible with Silk printing.

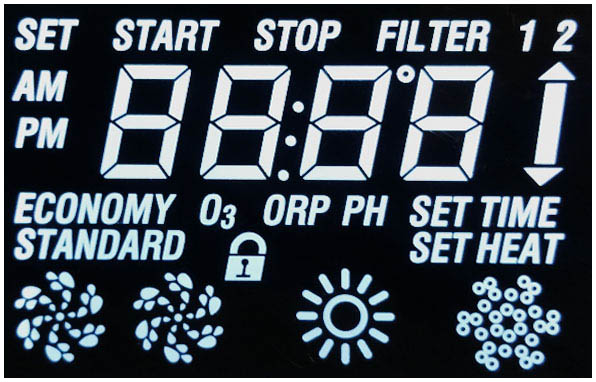

PMVA Technology(Vertical Alignment)
- True Black Background
- Ultra High Contrast Ratio 1000:1
- Ultra Wide Viewing Cone – 85 degree all around
- Background color doesn’t degrade between -30 to 80 ℃
Interface Options – All Custom glass LCD displays have a standard option to be designed with either Pins or Elastomeric Strips.
Multiple Backlight Color Options – Choose any color for the backlight/ fluid combination of the custom glass LCD displays.
- All backlights come with a diffuser film to evenly disperse the light from the LED’s to eliminate “hot spots???
|Custom Glass LCD Info||Minimum||Maximum|
|Size||No less than 1.5″||No more than 10″|
|Width of Glass||No less than 15mm||No more than 160mm|
|Large Glass Height||No less than 15mm||No more than 160mm|
|Small Glass Height||No less than 14mm||No more than 150mm|
|Viewing Area||No less than 1.4″||No more than 9.8″|
|First Contact||PIN and Zebra|
|Glass Thickness||1.7mm(seldom use), 2.0mm(common), 2.8mm(common)|
|Contact Pitch(Metal PIN)||Pitch=1.5mm, Pitch=1.8mm, Pitch=2.0mm, Pitch=2.54mm|
|Contact Pitch(Zebra)||Pitch: more than 0.6mm||No upper limit|
- Portable Test Equipment
- Measuring Devices
- Automotive Displays
- Medical Equipment Meters
- Marine Equipment
- Telecom Products
