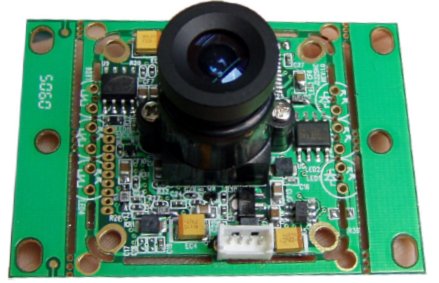

SF14CR-CCD

Features Full color CCD camera Resolution of up to 420 television lines Pal or NTSC formats Automatic backlight compensation

Quick Links: PDF Specification files | Request a quotation | Check price for SF14CR-CCD

Module Specifications

Dimensions	55mm(H) X 38mm(V)
Pickup device	1/4" SHARP CCD
System of signal	PAL/NTSC
Number of pixels	PAL: 542(H) X 582(V), NTSC: 512(H) X 492(V)
Sync. system	Internal
Horizontal resolution	420TV Line
S/N ratio	>46 dB
Minimum illumination	0.1 LUX
Backlight compensation	Auto
Electronic shutter	1/50(1/60) -1/10000S
Gamma correction	>0.45
Video output	1Vp-p 75ohm
Power supply	DC 12V 100mA
Lens	3.6mm
Operating temperature	-20 ~ + 60
